Cryogen free superconducting magnet with room temperature bore

Superconducting magnets with room temperature bore can be integrated into low-temperature devices, spectrometers, vacuum chamber high-temperature furnaces, reaction devices, crystal growth equipment, and microwave equipment, and are used for thin film growth under strong fields, electromagnetic transport testing, Gyrotron, infrared THz, microscopic magneto-optical STM、AFM、ESR/EPR、NMR、Neutron scattering, X-ray, etc.

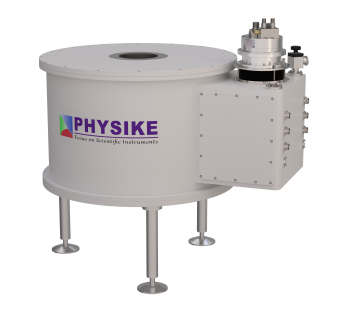

Compact split coils 5T superconducting magnet with RT bore

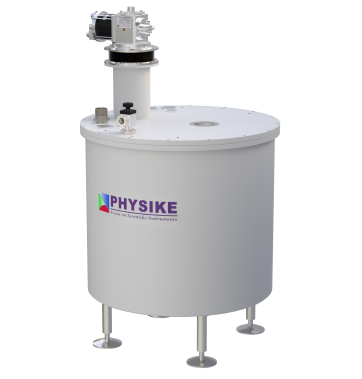

Compact 9T superconducting magnet with vertical RT bore

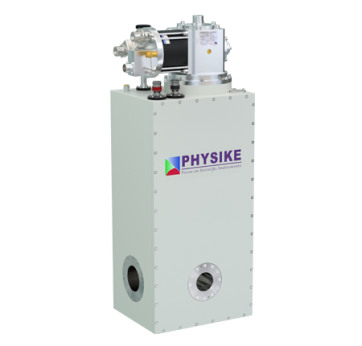

Compact 5/7T superconducting magnet with horizontal RT bore

5T/1T/1T three-axis superconducting magnet with 160mm RT bore

Examples

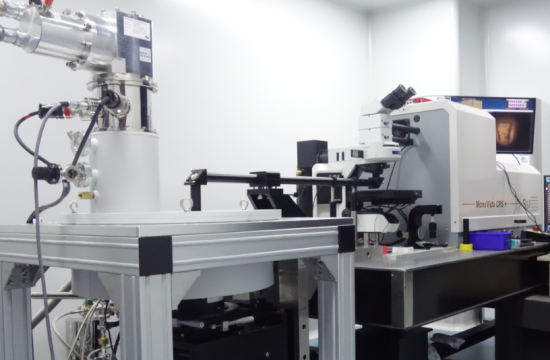

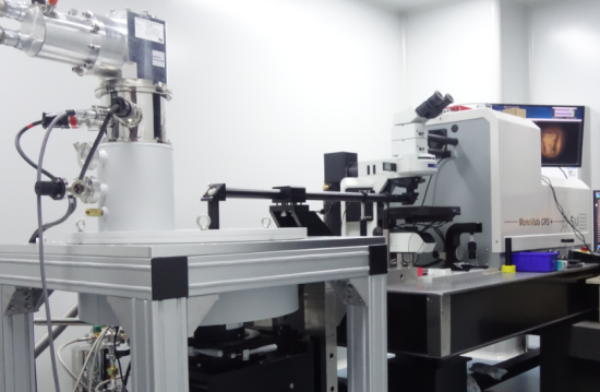

1. Compact 9T superconducting magnet with RT bore, matched with Qcryo-S-500 cryogen free microscopy cryostat, integrated membrane pressure adjustment DAC cell, realizing low temperature strong magnetic field high pressure micro Raman testing system, and integrating high-voltage electrical transport, Hall testing functions.

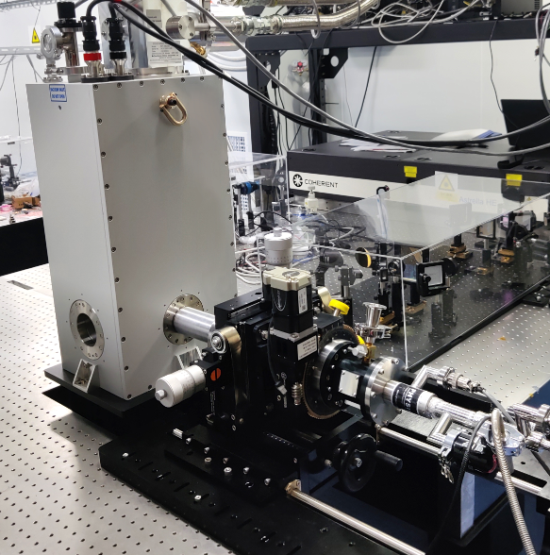

2. Compact superconducting magnet system with two sets of horizontal RT bore, matching with Qcryo-S-100 cryostat, providing five freedom of sample for infrared THz experiments.

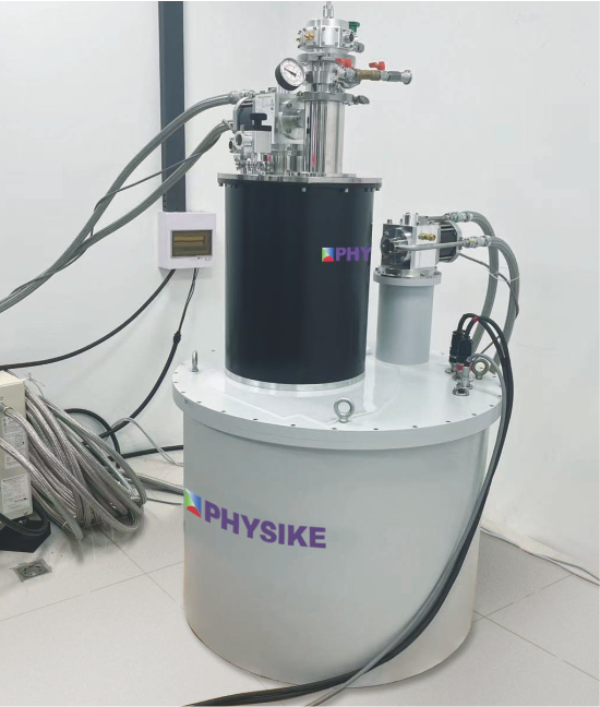

3.Superconducting magnet with 14T RT bore, matching with a 1.5K top-loading refrigerator, sample tube ID：65mm, base temperature:<1.45K, base temperature of He-3 insert: 270mK.

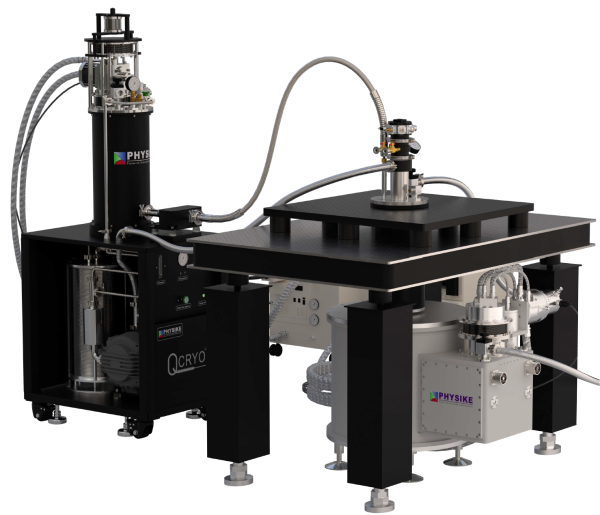

4. The cryogen free split type top-loading cryostat(Qcryo-SV-100）with 10nm nominal vibration level. The compact tail is inserted into 9T superconducting magnet with 100mm RT bore for near-field optics and magneto-optical experiments.
